Scanning device Type 5

4 channels

Used with devices: TSC-2M-16, TSC-3M-12, TSC-4M-16, TSC-5M-32, TSC-6M-8, TSC-7M-16, TSC-9M-12

In stock

Contact the company manager to order

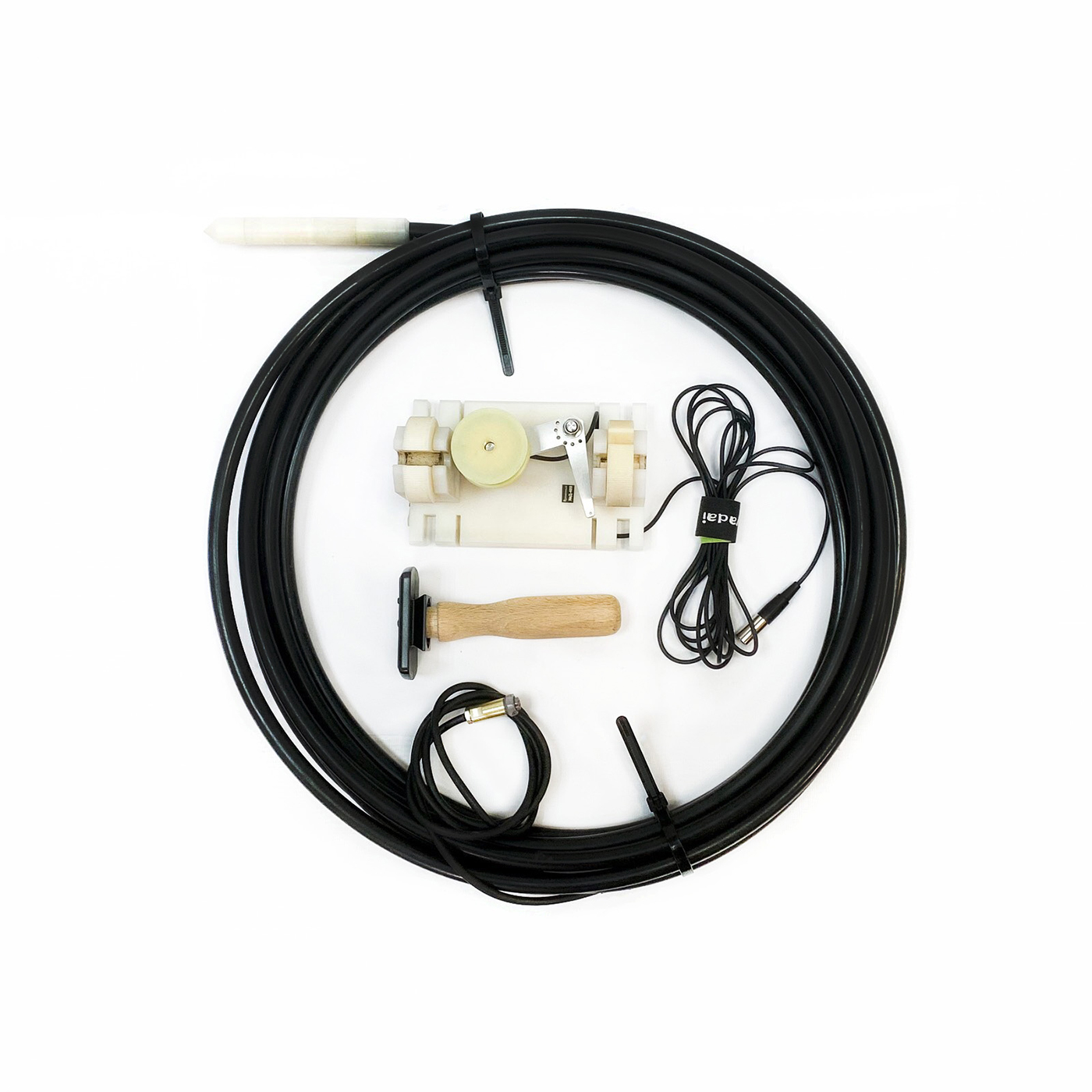

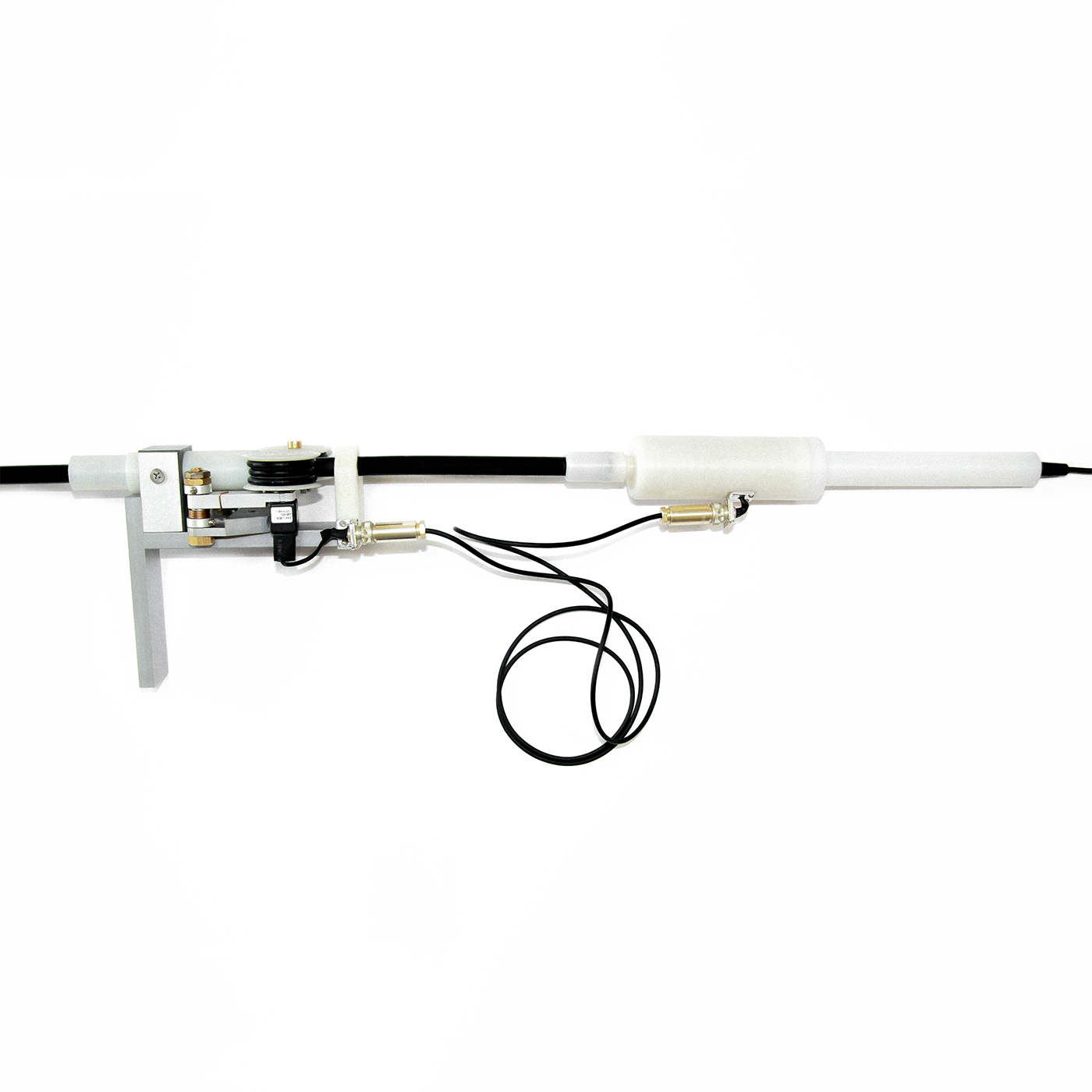

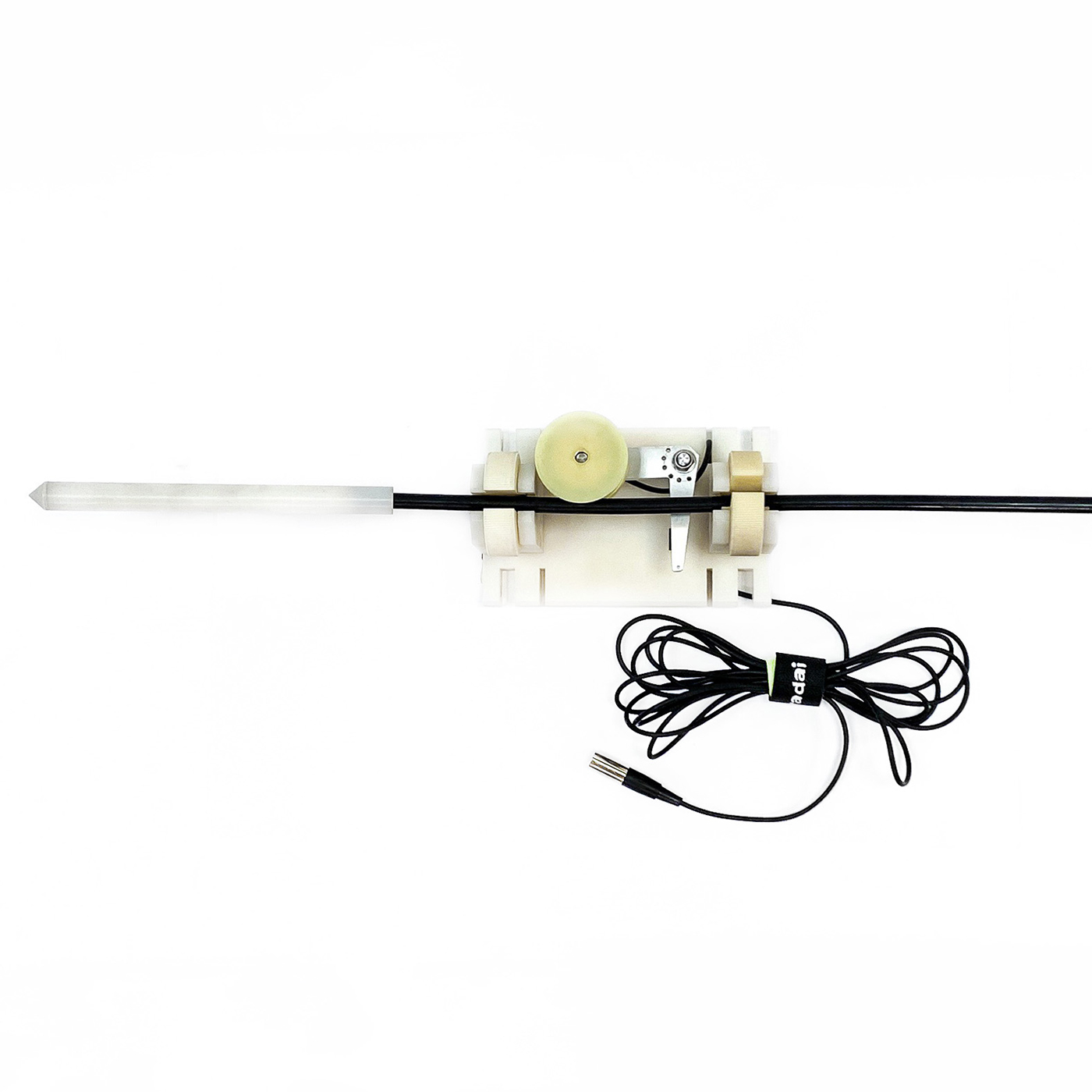

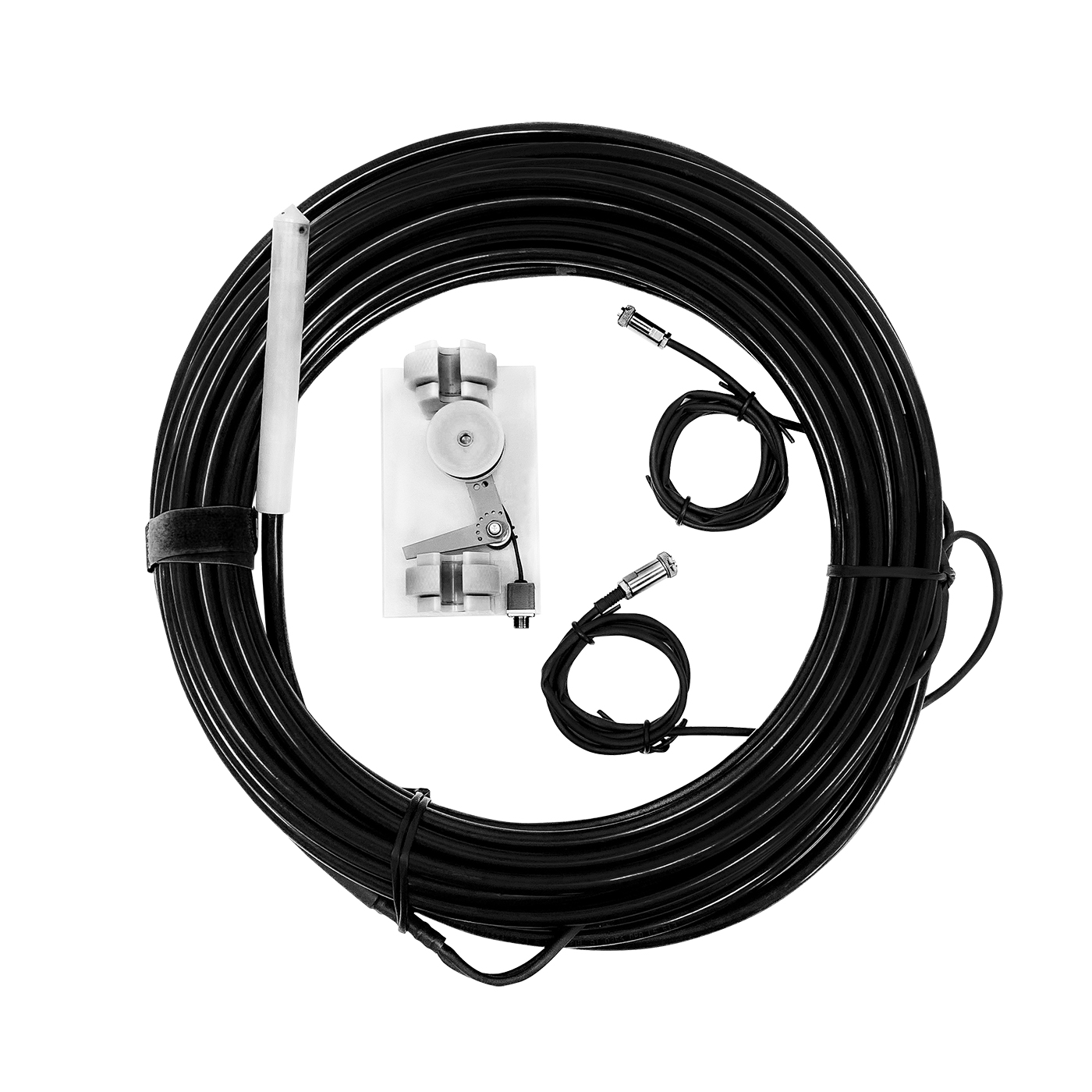

Scanning device photos

The sensor is designed for in-pipe diagnostics of heat exchanger tubes, flushing holes, etc. It has four flux-gate transducers in their two-component installation for simultaneous measuring of the normal and tangential components of the magnetic field.

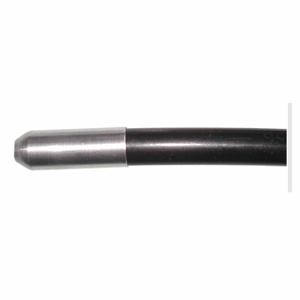

Sensor Type 5

Length counting is carried out in the "timer" mode on the device at a constant sensor movement speed.

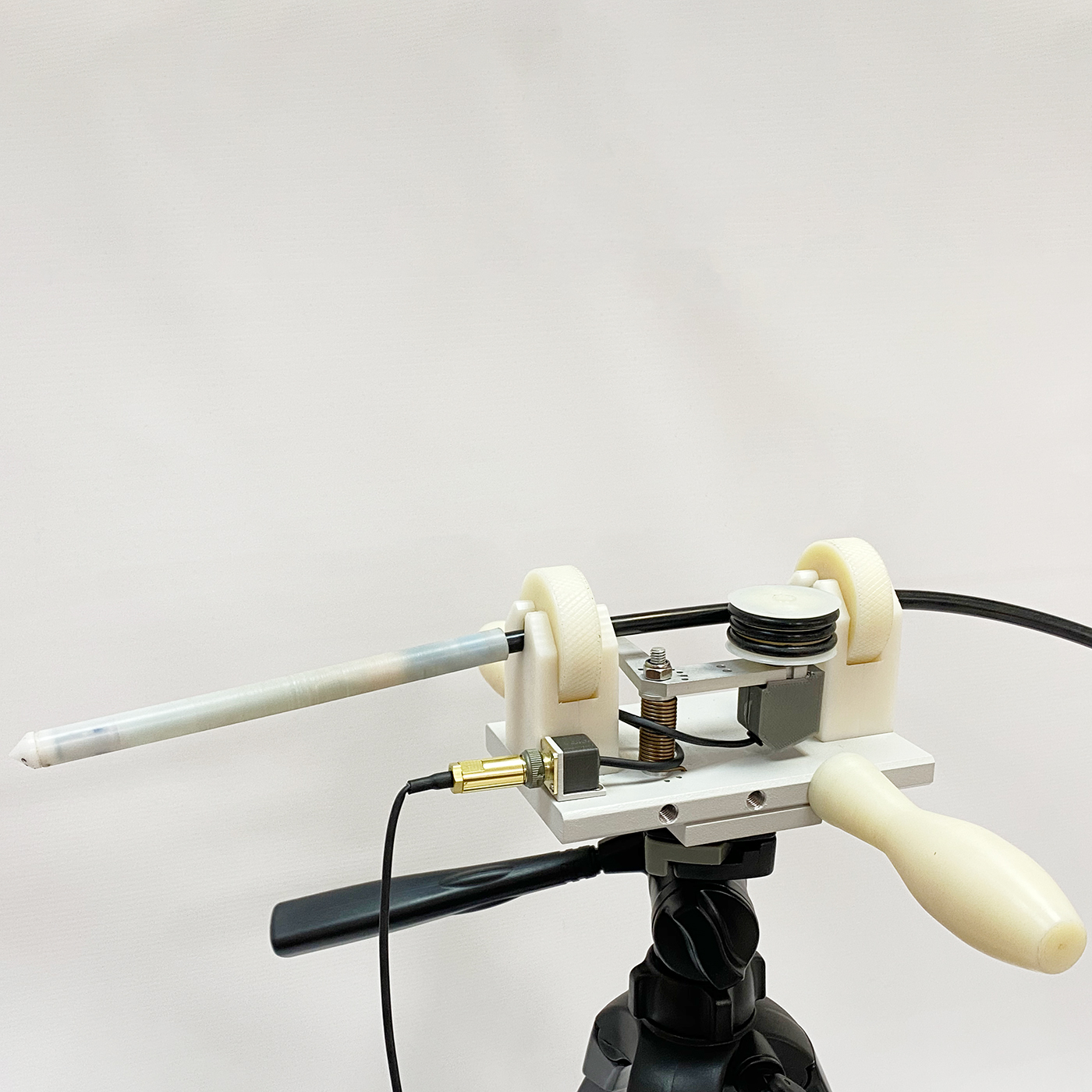

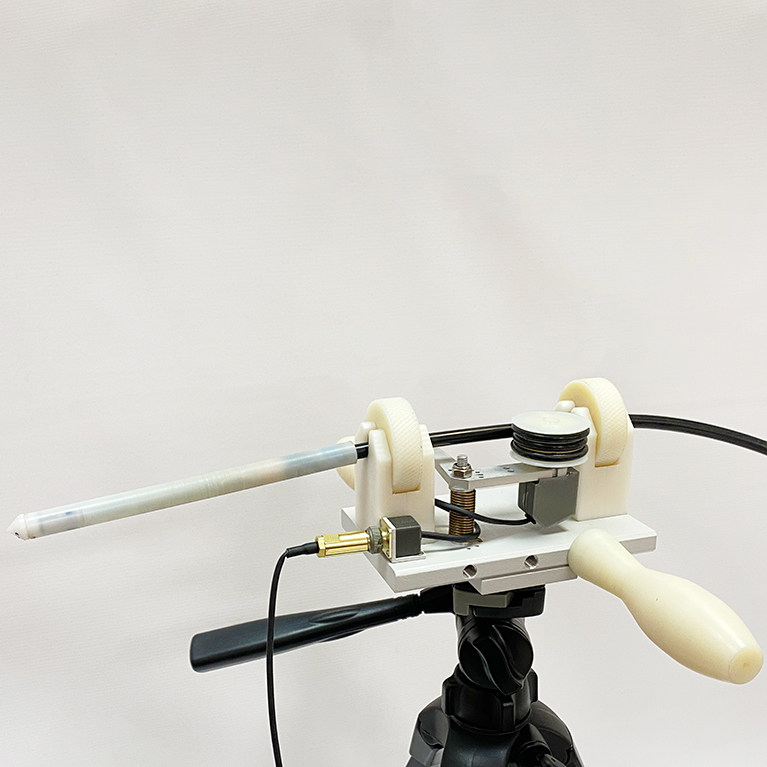

Application of the scanning device
