Tester of Stress Concentration TSC‑2M‑16

From 2 to 16 measuring channels

TSC is a system for measuring, recording and processing of diagnostic data about stressed-strained state of equipment and structures using the metal magnetic memory method.

Certificate for TSC-type instrument № 20675-11.

In stock

Contact the company manager to order

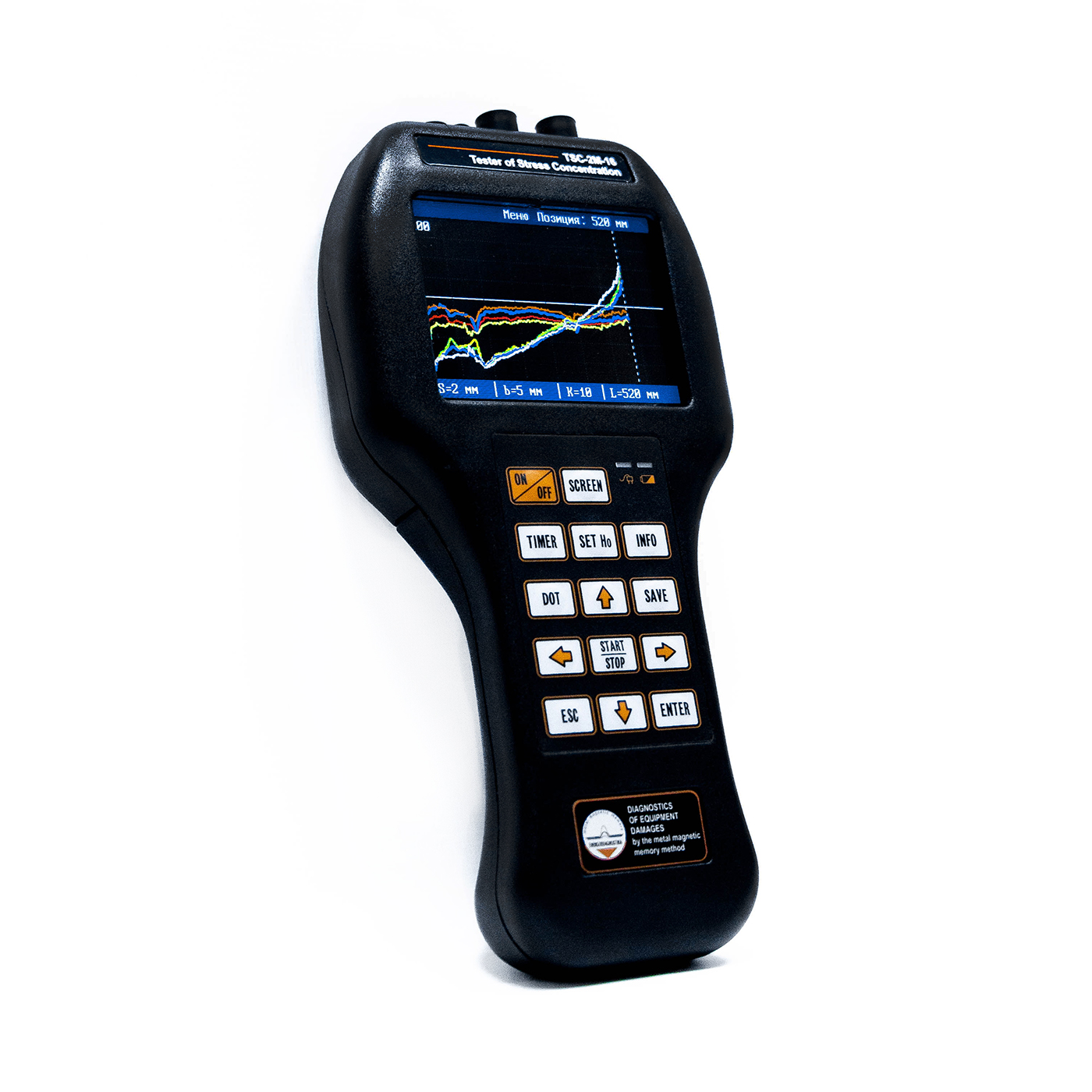

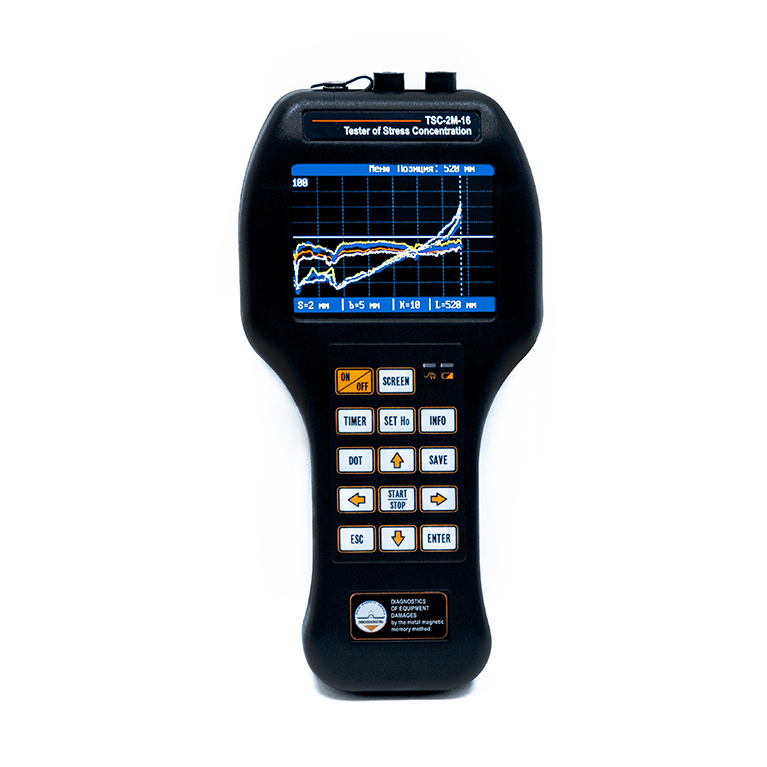

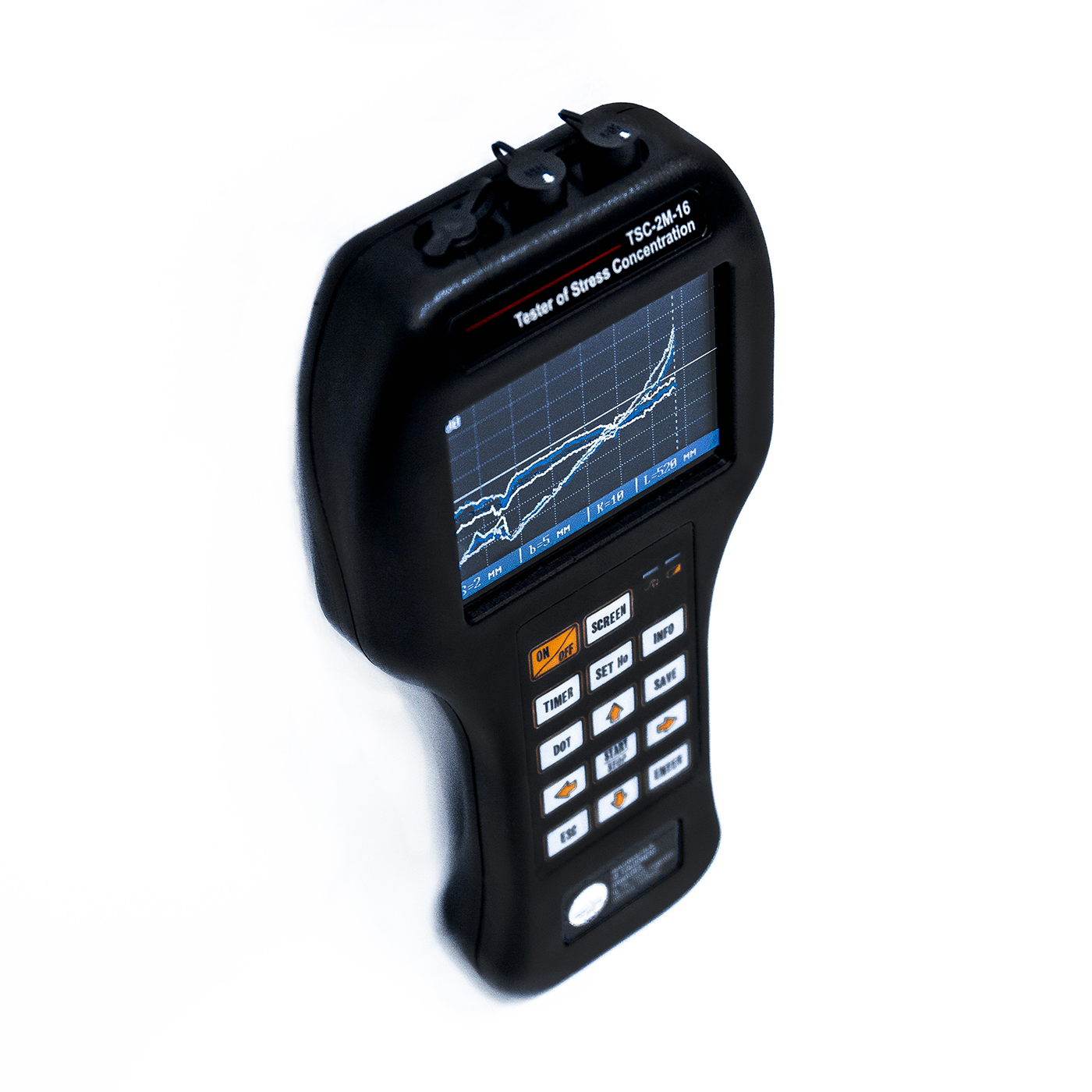

Photos of the device TSC-2M-16

The TSC-type devices are manufactured serially. By the operation principle they are specialized multi-channel flux-gate magnetometers. The Н magnetic field intensity is calibrated on instruments' scales in A/m (Ampere/meter). The length of the recorded sensor movement is calibrated in mm (millimeters).

The TSC-type devices are unique means of measurement although there are a lot of various gages of magnetic field intensity (magnetometers) based on flux-gate transducers in Russia and abroad. Their uniqueness is both in their functional designation (detection of stress concentration zones, which are the main sources of equipment damaging) and in their structural specific features, marking them out significantly among the known magnetometers.

The distinctive features of TSC-type devices are:

  • Multi-channel operation
  • Scanning devices (20 types) allowing reading the values of field intensity and sensor movement length at a speed up to 0,5 m/s (all scanning devices are protected by Russian and International patents)
  • Software for automatic processing of results directly on test objects
  • Flash-memory for recording the results of object inspection and possibility to transfer the data to computers
  • Possibility to record inspection parameters with a specified frequency at a time unit ("timer" mode), which allows to execute inspection at products movement relative to sensors (inspection of rotating elements, moving ropes and cables, inspection of rails at flaw detector car movement, etc.)
  • "MMM-System" software for computer processing of inspection results in Windows 7/8/10

The TSC-2M-16 device has the following structural and functional distinctive features:

  • From 2 to 16 flux-gate transducers
  • Microprocessor 16 bit
  • RAM 2 Mb
  • 1 Gb flash-memory for recording of inspection results on object during 10-15 days without transferring the data to the computer
  • Special keyboard with 14 functional keys
  • Liquid-crystal display with resolution of 320x240 pixels for reflection of graphical information directly at equipment inspection
  • Dimensions 243x120x40mm
  • Weight including storage batteries 0,6 kg
  • Power supply from six built-in storage batteries DC 5V

Common technical data of TSC-type devices:

Range of Н measurements ± 2000 A/m
Basic relative error of the measured magnetic field for each channel 5%
Relative error of the measured length does not exceed 5%
Minimum / maximum scanning step (the distance between the two adjacent points of field and length measurement) 1 / 128 mm
Operating temperature range -15°С...+55°С
Operating humidity range 45% - 85%

Comparison characteristics of TSC-type devices:

TSC-2M-16 TSC-4M-16 TSC-5M-32 TSC-7M-16 TSC-8M-4 TSC-9M-12
Number of Н value measurement channels 2 - 16 2 - 16 2 - 32 2 - 16 2 - 4 2 - 12
Maximum scan speed in steps of 1 mm 0,7 m/s 0,5 m/s 1,3 m/s 1,3 m/s 0,5 m/s 0,5 m/s
Microprocessor 16 bit 16 bit 16 bit 16 bit 16 bit 16 bit
RAM 2 Mb 1 Mb 8 Mb 8 Mb 1 Mb 2 Mb
Flash-memory 1 Gb 32 Mb 1 Gb 1 Gb 8 Mb 256 Mb
Data transferring to PC USB RS232/USB USB USB USB USB
Keyboard 14 keys 45 keys 52 keys 45 keys 14 keys 14 keys
Display LCD, 320х240 pixels ELD, 320х240 pixels LCD, 800х480 pixels OLED, 800х480 pixels LCD, 320х240 pixels OLED, 320х240 pixels
Dimensions 243х120х40 mm 290х205х55 mm 250х136х48 mm 230х105х40 mm 165х83х32 mm 165х83х32 mm
Weight including storage batteries 0,6 kg 2,0 kg 1,2 kg 0,6 kg 0,4 kg 0,4 kg
Power consumption 1,2-3,0 W 4,0-5,0 W 3,0-3,5 W 1,2-3,0 W 1,2-3,0 W 1,2-3,0 W
Power supply built-in battery built-in battery built-in battery 4x1,2V AA built-in battery built-in battery
Powered by the AC adapter DC 5V DC 15V DC 15V DC 9V DC 5V DC 5V
